CUSTOM TATTOO MACHINE
3 Years
| Ask Lasest Price | |
| Brand Name : | ODM |
| Model Number : | HF-62 |
| Certification : | FCC＆FDA |
| Price : | Negociation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 100000sets |
| Delivery Time : | 20 working days |

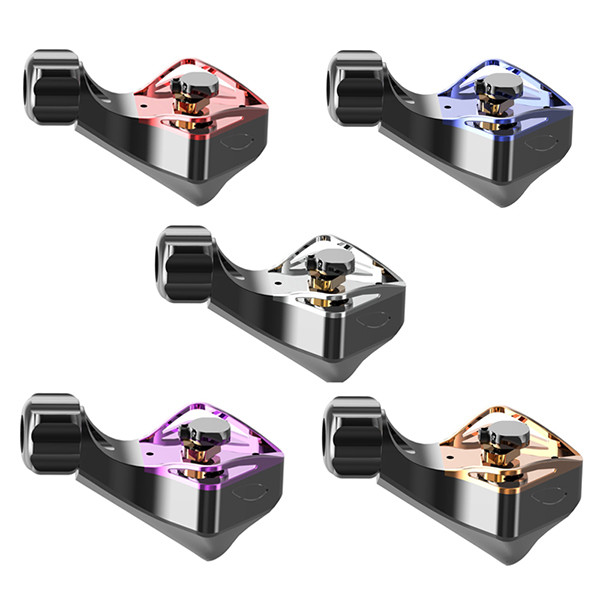

Rotary Tattoo Machine Rotary Machine Aluminum Alloy Stroke 3.8mm
Rotary Tattoo Machine Rotary Tattoo Pen Machine Aluminum Alloy Stroke 4.0mm
Main products :
1.Wireless Tattoo Machine
2.Wireless Permanent Makeup Pen
3.RCA & DC Tattoo Machine
4.Rotary Tattoo Machine
5.Tattoo Battery & Grip
Our company can provide internal structure and external design ,
combined with the motor size, needle size, and the strokes
requirements, to provide customers with high-quality tattoo
machines . Low vibration, strong strength, novel appearance and
stable quality are our goals.
Product Description
| Material | Aluminum Alloy & Brass & Stainless Steel & Fine Steel & Delrin |
| Available Stroke | 3.5mm , 4.0mm |
| Dimension | 41.43mm * 20.5mm * 48.7mm |
| Design Weight | 125g |
| Output Voltage | 4 - 12V |
| Motor | Coreless motor |
| Working Voltage | 4 - 8V |
| Needle Length | Adujustable 0 - 4.1mm |
| Connector | RCA |
| Torque | 340 |
| Type | Rotary tattoo machine |
Motor Dimensions
| Motor Code | Type | Diameter (mm) | Length (mm) | Voltage (v) | No-Load Speed (rpm) | No-Load Current (mA) | Weight (g) |
| EM2016 | DC Brush coreless | 26 | 10 | 12 | 9000 ± 10% | ≤40 | 22 |
| M1725 | DC Brush coreless | 17 | 25 | 12 | 12000±15% | ≤40 | 25 |
| M2025 | DC Brush coreless | 20 | 25 | 12 | 10000 ±10% | ≤40 | 35 |
| M2225 | DC Brush coreless | 22 | 25 | 12 | 9000 ± 10% | ≤25 | 45 |
| M2016 | DC Brush coreless | 20 | 16 | 12 | 10800 ±10% | ≤20 | 25 |
| M2607 | DC Brush coreless | 26 | 7 | 12 | 9500 ± 10% | ≤20 | 20 |
| M2610 | DC Brush coreless | 26 | 10 | 12 | 8800 ± 10% | ≤20 | 25 |
| M1526 | DC Brush | 15.3 | 26.3 | 12 | 13000 ±10% | ≤50 | 15 |
| M2412 | DC Brush | 24 | 12 | 12 | 10000 ±10% | ≤75 | 20 |
| M2430 | DC Brush | 24 | 30 | 12 | 9000 ± 10% | ≤60 | 50 |
Customized details
| 1. OEM/ODM tattoo machines are highly appreciated, customized are welcome . |
| 2. The length, diameter, color and structure of the tattoo machine all can be customized . |
| 3. Customer need to confirm which motor to use , as motors have lots of dimensions , and it will depends on the function too . |
| 4. Customer need to confirm the needles which to be normally used
or matched , as needles have different sizes in the market . |
Outter size
Product characteristics
1:One-handed accusation.
2:Dynamic foot.
3:High speed.
4:Stable needle output.
5:Strong performance.
6:Seamless adjustmen
|
|
